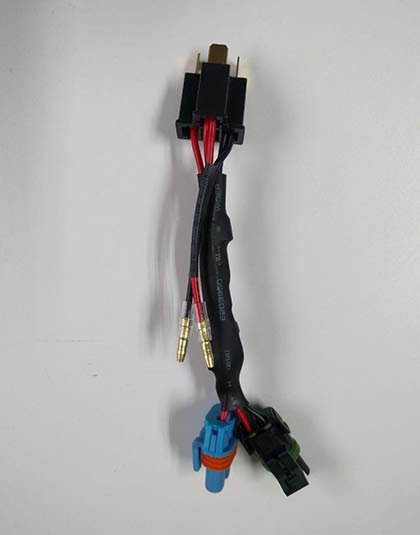

H4 Mini Harness HB3-Low, WPT-High Rev. C

– Main Connector:
Part# BC-MDH-HB2 with H4 / HB2 Connector, or
– Low Beam Connector:
9005 / HB3 Male
– High Beam Connector:
2-Prong Weather-Pack Male WPT-2 (12015792)
– 2 x 6A Diode with heat shrink tubing
– Dimmer / Resistor wired inline with heat shrink tubing
TYCO# THS10150RJ
– Leads for optional fuse box with female bullet terminals
– 18 Copper AWG for Fuse Box, 16 Copper AWG Low & High
– Heat shrink tubing on low & high circuit wires
