Hitachi Mini Harness HB3-Low, WPT-High with Dimmer, Rev. F

Name: Hitachi Mini Harness HB3-Low, WPT-High with Dimmer, Rev. F
SKU: FV-BCH-MC-HIT-REV.F
Availability: InStock

$20.98

people are viewing this right now

Hitachi Mini Harness HB3-Low, WPT-High Rev. E

Guaranteed Safe Checkout

Free worldwide shipping on all orders over $100
Delivers in: 3-7 Working Days Shipping & Return

SKU: FV-BCH-MC-HIT-REV.F Category: Wiring

Description
Additional information

JANUARY 2021 – REV.F
Notes:

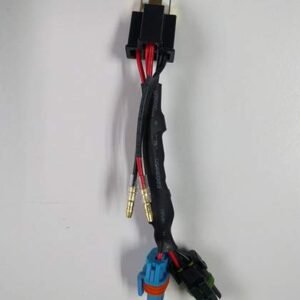

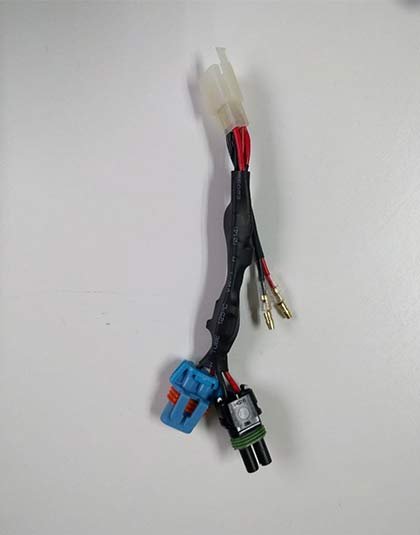

BC-M/C-MINI-HARNESS
– Main Connector:
Part# BC-MDH-HIT with Hitachi 4-PIN A4AP
– Low Beam Connector:
9005 / HB3 Male
– High Beam Connector:
2-Prong Weather-Pack Male WPT-2 (12015792)
– 2 x 6A Diode with heat shrink tubing
– Dimmer / Resistor wired inline with heat shrink tubing
TYCO# THS10100RJ (Changed to 100 ohm on Rev.E)
– Leads for optional fuse box with bullet terminals
– 20 AWG Copper Wire (Update to 18AWG on Rev. E)
– Heat shrink tubing on low & high circuit wires
– Change Diode from 6A to 10A
COPYWRITE ? TOTAL E-DIGITAL INC 2021
